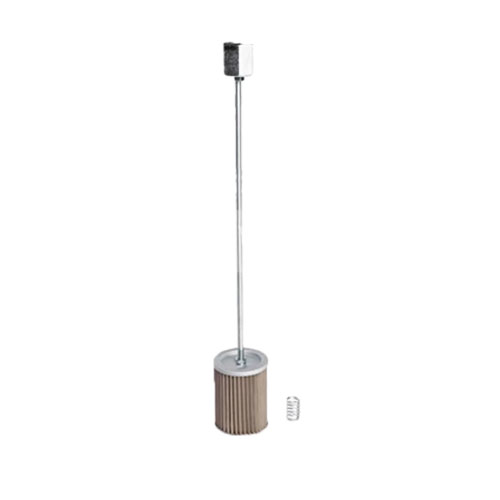

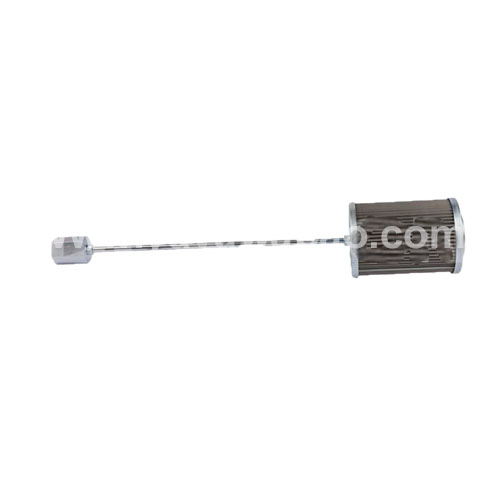

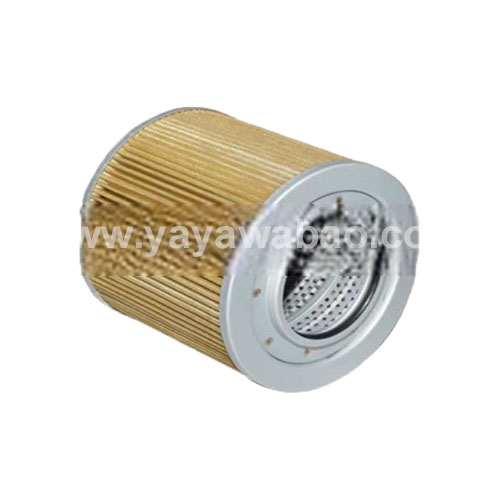

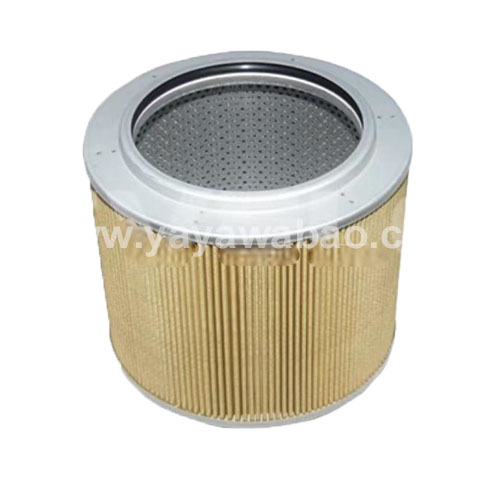

Oil Suction Filter Element
Product NO.:2474-9016A\2471-9401A\2471-1004B\400408-00084\K1024886\400408-00058\400408-00003
2474-9016A
Size/Dimension:150X157
Net Weight:0.6KG
2471-9401A
Size/Dimension:200X190
Net Weight:1.2KG
2471-1004B
Size/Dimension:44X58
Net Weight:0.2KG
K1024886
Size/Dimension:90X785
Net Weight:1.11KG
400408-00003
Size/Dimension:200X200
Net Weight:1.38KG
The main function of the excavator suction oil filter element is to filter impurities, particles, and contaminants from the hydraulic oil, keeping the hydraulic system’s fluid clean and ensuring the normal operation of the internal components of the system.

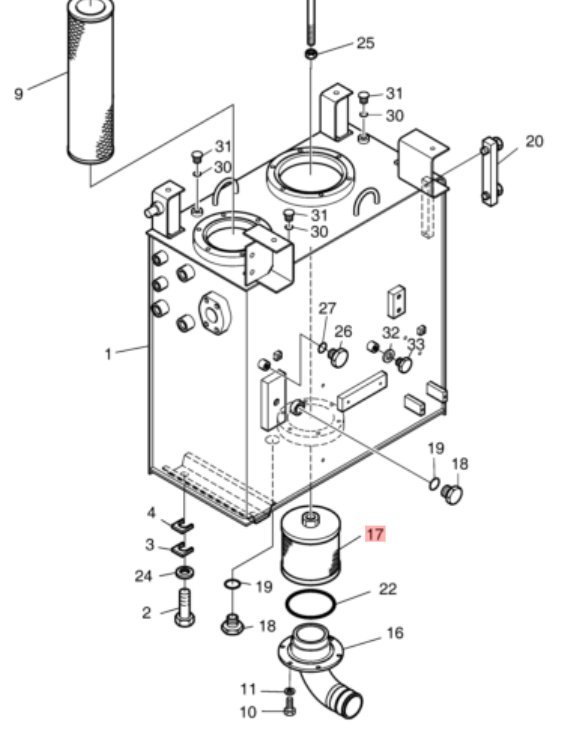

The suction oil filter element in the excavator’s hydraulic system is a necessary measure to protect the hydraulic pump, with a filtration precision generally ranging from 100 to 180 μm, determined by the pump’s self-priming capability. This filter element effectively filters out impurities and contaminants from the hydraulic oil, preventing excessive flow resistance that could lead to cavitation in the hydraulic pump, thereby ensuring the normal operation of the hydraulic system. Additionally, the suction oil filter element can reduce wear on the hydraulic system and extend its service life, which is crucial for maintaining the excavator’s performance and lowering operating costs. The filter element will absorb contaminants during operation, and if not replaced in time, it can lead to failures and damage to the hydraulic system. Therefore, regular inspection and replacement of the suction oil filter element are important aspects of excavator maintenance.
There are various types of filter elements for excavators, with common types including air filter elements, air conditioning filter elements, hydraulic oil pipeline filter elements, fuel filter elements, hydraulic oil return filter elements, pilot filter elements, and hydraulic oil suction filter elements. These filter elements play a significant role in the maintenance and upkeep of excavators.
| Product NO. | Applicable models | Weight | Packaging unit
|
| 2474-9016A | DH130LC-V
DH130W-V DH150LC-7 DH150W-7 DH150W-7S DH210W-7(S/N:20001~21000) DH210W-7(S/N:21001~) DH210W-7S DH215-7 DH215-9 DH215-9E DH220LC-3 DH220LC-7 DH220LC-9E DH220LC-V DH225LC-7 DH225LC-9 DH258LC-7 DH258LC-V DH80-7 DH80GOLD DH80GOLD(S/N:50001~) DX120 DX120-9C DX130-9C/DX130-9CN DX140AF/DX140LCA DX150-9C/DX150LC-9C/DX150LC-9CN DX150LC DX150LCS DX150W(S2) DX150W-9C/DX150W-9CN DX150WE-9C/DX150WE-9CN DX200-9C (CN)/DX200-9C (CN) ACE DX210W-9C/DX210W-9CN DX215-5B DX215-9C ACE/DX215-9CN ACE DX215-9C/DX215-9CN DX220LC-9C DX220LC-9C ACE DX220LCA-2 / DX220A-2 DX225CD-9C DX225LC DX225LC-9C DX230LC-9C DX230LC-SKD DX230LCS DX260LC DX260LC-9C DX75 DX75-5B(S/N:20001~22711) DX75-5B(S/N:22712~) DX75-7B DX75-9C (S/N:20001~22711) DX75-9C ACE/DX75-9CN ACE DX75-9C PLUS/DX75-9CN PLUS(S/N:22712~) DX75E-9C/DX75E-9CN DX80 DX80(S/N:50001~) DX88-9C (S/N:20001~20232) DX88-9C (S/N:20233~) S150LC-7B S80GOLD S80GOLD(S/N:50001~) DX140 DX140A DX140LC DX140LC-3 / DX160LC-3 DX140LC-5 DX140LC-5 / DX160LC-5 DX140LC-5K(L) DX140LCR DX140LCR-3 DX140LCR-5 DX140LCR-5 DX140LCR-5K(L) DX140R DX140W / DX160W TIER-II DX140W / DX160W TIER-III DX140W ACE DX140W ACE PLUS(S/N:8141~) DX140W TIER-II DX140W TIER-III DX140W-3 / DX160W-3 DX140W-5 DX140W-5 / DX160W-5 DX140W-5K(L)/DX160W-5K(L)(S/N:2485~) DX140WA DX165W-5 DX170LC-5 DX170W DX170W-5 DX180LC DX180LC-3 DX180LC-5 DX190W DX190W-3 DX190W-5 DX190WA(T-2) DX200A DX200A(S/N:1001~) DX210 / DX225LCB DX210W DX210W-5 DX210W-5B DX210W-5K(L) DX210WA DX210WA(T-2) DX220A / DX225LCA DX220AF DX220AF(S/N:1001~) DX220LC DX220LC (TIER-3) DX220LC-5 DX220LC-5K(L) DX220LCA DX225LC DX225LC (S/N 5433~) DX225LC-3 DX225LC-5 DX225LCA(S/N:1001~) DX225LCA-2 / DX200A-2 DX225NLC DX225NLCA DX230LC DX235LC-5 DX235LCR DX235LCR-5 DX235LCR-5K(L) DX235NLC-5 DX255LC DX255LC-3 DX255LC-5 DX260LCA E145 E165 SOLAR 130-2 SOLAR 130-III SOLAR 130-V SOLAR 130LC-V SOLAR 130W-III SOLAR 130W-V(1) SOLAR 130W-V(2) SOLAR 140-V SOLAR 140LC-V SOLAR 140W-V SOLAR 160W-V SOLAR 170-III SOLAR 170LC-V SOLAR 170W-III SOLAR 170W-V SOLAR 175LC-V SOLAR 180W-V SOLAR 185W-V SOLAR 200W-III SOLAR 200W-V SOLAR 210W-V SOLAR 220LC SOLAR 220LC-6 SOLAR 220LC-III SOLAR 220LC-V SOLAR 220N-V SOLAR 225LC-7A SOLAR 225LC-V SOLAR 225NLC-V SOLAR 230LC-V SOLAR 250LC-V SOLAR 255LC-V SOLAR 70-III SOLAR 75-V SOLAR 80W-III TXC140-1 TXC140LC-2 TXC175-1 TXC180LC-2 TXC225-1 TXC225LC-2 TXC255-1 TXC255LC-2 DX140LC DX140LC-3 DX140W-3 / DX160W-3 DX140W/DX160W DX160LC DX160LC-3 DX160W RAIL WAY DX180LC DX180LC-3 DX225LC DX225LC-3 DX235NLC DX255LC DX255LC-3 SOLAR 130LC-V SOLAR 140LC-V SOLAR 140W-V & S160W-V SOLAR 140W-V RAIL WAY SOLAR 150LC-V SOLAR 155LC-V SOLAR 170LC-V SOLAR 175LC-V SOLAR 210W-V SOLAR 220LC-V SOLAR 225LC-V SOLAR 250LC-V SOLAR 255LC-V SOLAR 75-V DX225LCA |
0.6 KG | EA |
| 2471-9401A | DH280LC-3
DH300LC-7 DH300LC-V DH330LC-3 DH360LC-V DH370LC-7 DH370LC-9 DH420LC-7 DH500LC-7 DX300LC DX300LC-9C DX300LCS DX340LC-9C DX345LC DX350LC DX360LC-3B DX360LC-9C DX380LC DX380LC-9C DX420LC DX450LC-3B/DX450LC-9C DX490LC-9C/DX500LC-9C/DX520LC-9C DX500-9C ACE/DX500LC-9C ACE/DX560LC-9C ACE DX500LC-9C (S/N:22001~22044) DX500LC/DX500LCG DX300LC DX300LC-3 DX300LC-3(S/N:1001~1511) DX300LC-3(S/N:1512~) DX300LC-5 DX300LC-5(S/N:1001~1057) DX300LC-5(S/N:1058~) DX300LC-5(S/N:20001~) DX300LC-5K(L) DX300LC-7 DX300LCA DX300LCE DX340LC DX340LC-3 / DX350LC-3 DX340LC-5/DX350LC-5(S/N:10001~10049) DX340LC-5 / DX350LC-5(S/N:10050~) DX340LC-5 / DX350LC-5(S/N:20001~) DX340LCA DX340LCA-K/DX360LCA-K(S/N:20001~) DX350LC DX350LC-7 DX350LCA / DX360LCA DX360LCA(S/N:5950~) DX380LC DX380LC-3 DX380LC-3(OCEANIA) DX380LC-5 DX380LC-5/DX400LC-5 DX380LC-5K(L) DX380LC-7 DX380LCA DX420LC DX420LC-3 DX420LC-5(S/N:10001~10010) DX420LC-5(S/N:10011~) DX420LC-7 DX420LCA DX420LCA-K(S/N:20001~) DX480LC DX480LCA / DX500LCA DX480LCA / DX500LCA / DX520LCA DX480LCA-K/DX520LCA-K(S/N:20001~) DX490LC-3 DX490LC-5 / DX530LC-5 DX490LC-5(S/N:10001~10011) DX490LC-5(S/N:10012~) DX490LC-7 / DX530LC-7 DX520LC DX520LC / DX520LCA DX520LCA DX530LC-3 DX530LC-5(NT)(S/N:10001~10024) DX530LC-5(NT)(S/N:10025~) DX530LC-5(S/N:10001~10006) DX530LC-5(S/N:10001~10055) DX530LC-5(S/N:10007~) DX530LC-5(S/N:10056~) DX530LC-5B DX530LC-5K(L) SOLAR 280LC-III SOLAR 280LC-III SOLAR 290LC-V SOLAR 300LC-7A SOLAR 300LC-V SOLAR 330-III SOLAR 330LC-V SOLAR 340LC-V SOLAR 360LC-V SOLAR 370LC-V SOLAR 400LC-III SOLAR 400LC-V SOLAR 420LC-V SOLAR 450-III SOLAR 450LC-V SOLAR 470LC-V SOLAR 500LC-V TXC300-1 TXC300LC-2 TXC340-1 TXC340LC-2 TXC420-1 TXC420LC-2 TXC470-1 TXC480LC-2 TXC500-1 TXC520LC-2 DX300LC DX300LC-3 SOLAR 290LC-V |
1.2KG | EA |
| 2471-1004B | DH130W-V
DH220LC-3 DH220LC-V DH258LC-V DH280LC-3 DH300LC-V DH330LC-3 DH360LC-V DH55GOLD DH55GOLD(S/N:50001~) DH60-7 DX55-5B DX55-9C(CN)/DX60E-9C(CN)/DX60E-9C ACE DX60 DX60 (S/N:50001~) DX60-5B DX60-9C DX60-9C GOLD/DX65-9C PLUS/DX65-9CN PLUS DX60S DX60T DX60W(S/N:20001~21000) DX60W(S/N:21001~) DX60W(S/N:50001~) DX60W-9C(S/N:20001~21000) DX60W-9C/DX60W-9CN DX60WS E58 B55W-1 B55W-2 DX53W DX55 DX55 ACE DX55-5 DX55-5K(L)(S/N:2066~) DX55A DX55A MT DX55MT DX55MT ACE DX55MT-5 DX55MT-5K(L)(S/N:2066~) DX55W DX55W ACE DX55W-5 DX55W-5K(L)(S/N:1701~) DX55WA DX57W-5 DX57W-7 DX65-7 / DX65MT-7 DX65W-7 E55W E57W E57W-7 SOLAR 130-2 SOLAR 130-III SOLAR 130-V SOLAR 130LC-V SOLAR 130W-III SOLAR 130W-V(1) SOLAR 130W-V(2) SOLAR 170-III SOLAR 170LC-V SOLAR 170W-III SOLAR 170W-V SOLAR 200W-III SOLAR 200W-V SOLAR 220LC SOLAR 220LC-III SOLAR 220LC-V SOLAR 220N-V SOLAR 250LC-V SOLAR 280LC-III SOLAR 290LC-V SOLAR 30 SOLAR 330-III SOLAR 330LC-V SOLAR 360LC-V SOLAR 400LC-III SOLAR 400LC-V SOLAR 450-III SOLAR 450LC-V SOLAR 50 SOLAR 50W-III SOLAR 55 SOLAR 55-V (S/N 10001~) SOLAR 55-V (S/N 1~) SOLAR 55-V GOLD SOLAR 55-V GOLD PLUS SOLAR 55-V PLUS SOLAR 55-V SUPER SOLAR 55W-V SOLAR 55W-V GOLD PLUS SOLAR 55W-V PLUS SOLAR 55W-V SUPER SOLAR 70-III SOLAR 80W-III SOLAR 130LC-V SOLAR 150LC-V SOLAR 170LC-V SOLAR 220LC-V SOLAR 250LC-V SOLAR 290LC-V |
0.2KG | EA |
| 400408-00084 | DX270HD-10
DX270LC-9C ACE DX300LC-7B DX300LC-9C DX305HD-10 DX305LC-9C ACE DX360LC-3B DX360LC-7B DX360LC-9C DX380-10 DX380-9C ACE DX380HD-10 DX380LC-9C DX380LC-9C ACE DX400LC-7B DX450LC-3B/DX450LC-9C DX490LC-9C/DX500LC-9C/DX520LC-9C DX500-9C ACE/DX500LC-9C ACE/DX560LC-9C ACE DX500HD-10/DX560HD-10 DX500LC-9C ACE/DX560LC-9C ACE (S/N:30001~) DX255LC-7 DX300LC DX300LC-5(S/N:20001~) DX300LC-5K(L) DX300LC-7 DX300LC-7K DX300LC-7M / DX320LC-7M DX300LCA DX300LCA-7M DX300LCE DX320LC-7 DX340LC-5/DX350LC-5(S/N:20001~) DX340LCA-K/DX360LCA-K(S/N:20001~) DX350LC-7 DX350LC-7K DX350LCR-7 DX360LC-7M DX360LCA-7M DX380LC-3 DX380LC-3(OCEANIA) DX380LC-5 / DX400LC-5 DX380LC-5K(L) DX380LC-7 DX380LC-7K DX400LC-7 DX400LC-7M DX420LC-5(S/N:10011~) DX420LC-7 DX420LC-7K DX420LCA DX450LC-7M DX450LCA-7M DX480LCA-K/DX520LCA-K(S/N:20001~) DX490LC-5 / DX530LC-5 DX490LC-7 / DX530LC-7 DX490LC-7K / DX530LC-7K DX490LC-7M / DX530LC-7M DX490LCA-7M / DX530LCA-7M DX530LC-5B DX530LC-5K(L) DX550LC-7 HX355ALCR |
1.4KG | EA |
| K1024886 | DX60
DX60 (S/N:50001~) DX60S DX60T DX55 DX55 ACE DX55 ACE PLUS(S/N:7180~) DX55A DX55A MT DX55MT DX55MT ACE DX55MT ACE PLUS(S/N:6557~) |
1.1KG | EA |
| 400408-00058 | DX60
DX55 ACE PLUS(S/N:7180~) DX55MT ACE PLUS(S/N:6557~) |
1.086KG | EA |
| 400408-00003 | DX680HD-10
DX700LC DX800HD-10 DX800LC-9C DX650LC-7 DX700LC DX700LCA DX800LC-5B DX800LC-7 HX800AL HX800L |
1.4KG | EA |
