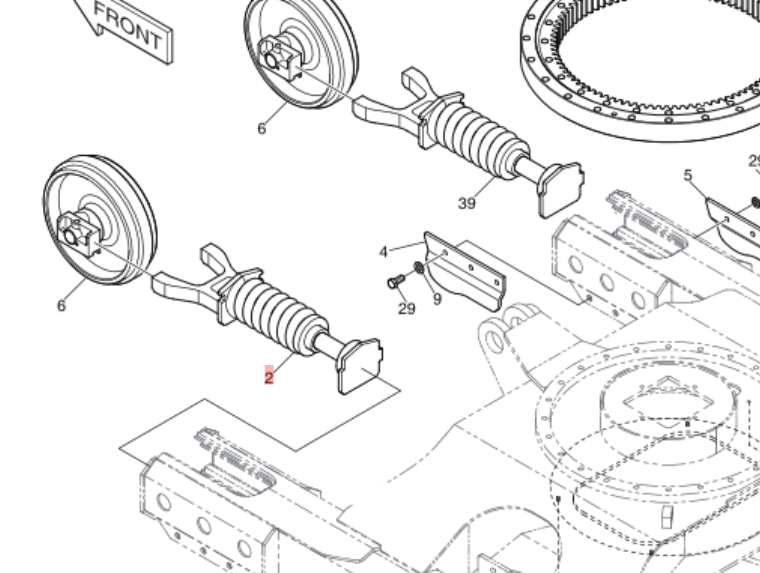

Adjuster,Track Tension;LH
200101-00094E
200101-00094
200101-00094A
200101-00094B
200101-00094C
200101-00094E
200101-00094A
Size/Dimension:650×250×200
Net Weight:34KG
200101-00094B
Size/Dimension:640×250×200
Net Weight:35KG
200101-00094C
Size/Dimension:690X290X220
Net Weight:36KG
The main function of the excavator track spring is to maintain the proper tension of the track and provide cushioning.
The excavator track spring, especially in the case of the guide wheel, serves two primary functions through its tensioning spring design:
1. Maintaining Proper Track Tension: This ensures that the track adheres closely to the ground, enhancing the stability and traction of the excavator, thereby maintaining stability during operation and travel.
2. Providing Cushioning: The tensioning spring absorbs shocks from the uneven ground encountered during work, reducing wear on the track and the excavator, extending their service life. Additionally, it minimizes vibrations and noise during operation, improving work efficiency and operator comfort.
These functions collectively ensure that the excavator can operate stably and efficiently in complex working environments while protecting the machine from unnecessary damage.
| Product NO. | Applicable models | Weight | Packaging unit |
| 200101-00094E | DX55-9C(CN)/DX60E-9C(CN)/DX60E-9C ACE
DX60 ACE-10/DX60 ACE-10N DX60-5B DX60-9C GOLD/DX65-9C PLUS/DX65-9CN PLUS DX60E-10/DX60E-10N(S/N:20001~) DX60E-10/DX60E-10N(S/N:30001~) |
37.073 KG | EA |
| 200101-00094 | DX55-5B
DX55-5B DX55-9C(CN)/DX60E-9C(CN)/DX60E-9C ACE DX60 ACE-10/DX60 ACE-10N DX60-5B DX60-9C DX60-9C GOLD/DX65-9C PLUS/DX65-9CN PLUS DX60E-10/DX60E-10N(S/N:20001~) DX60E-10/DX60E-10N(S/N:30001~) E58 DX55-5 DX55-5K(L)(S/N:2066~) DX55MT-5 DX55MT-5K(L)(S/N:2066~) |
34 KG | EA |
| 200101-00094A | DX55-5B
DX55-9C(CN)/DX60E-9C(CN)/DX60E-9C ACE DX60-5B DX60-9C DX60-9C GOLD/DX65-9C PLUS/DX65-9CN PLUS DX55-5 DX55-5K(L)(S/N:2066~) DX55MT-5K(L)(S/N:2066~) |
34 KG | EA |
| 200101-00094B | DX55-5B
DX55-9C(CN)/DX60E-9C(CN)/DX60E-9C ACE DX60-5B DX60-9C DX60-9C GOLD/DX65-9C PLUS/DX65-9CN PLUS E58 DX55-5K(L)(S/N:2066~) DX55MT-5K(L)(S/N:2066~) |
35 KG | EA |
| 200101-00094C | DX55-5B
DX55-9C(CN)/DX60E-9C(CN)/DX60E-9C ACE DX60-5B DX60-9C DX60-9C GOLD/DX65-9C PLUS/DX65-9CN PLUS E58 DX55-5K(L)(S/N:2066~) DX55MT-5K(L)(S/N:2066~) |
36 KG | EA |
| 200101-00094E | DX55-9C(CN)/DX60E-9C(CN)/DX60E-9C ACE
DX60 ACE-10/DX60 ACE-10N DX60-5B DX60-9C GOLD/DX65-9C PLUS/DX65-9CN PLUS DX60E-10/DX60E-10N(S/N:20001~) DX60E-10/DX60E-10N(S/N:30001~) |
37.073 KG | EA |
